【Unlock Speed Limit Note】
1. Simultaneously long-press the "↑" and "↓" buttons to enter the settings interface.
2. Simultaneously long-press the "↓" and "Power" buttons to enter the password setting interface.
3. Enter the default password "0512".
4. After setting the password, briefly press the "Power" button to enter the parameter setting interface.
5. Enter the speed adjustment interface. Use the short press of the "↑" and "↓" buttons to adjust the desired speed.
6. Long press the "Power" button to save and exit.
Click to watch the video tutorial.
Main Features

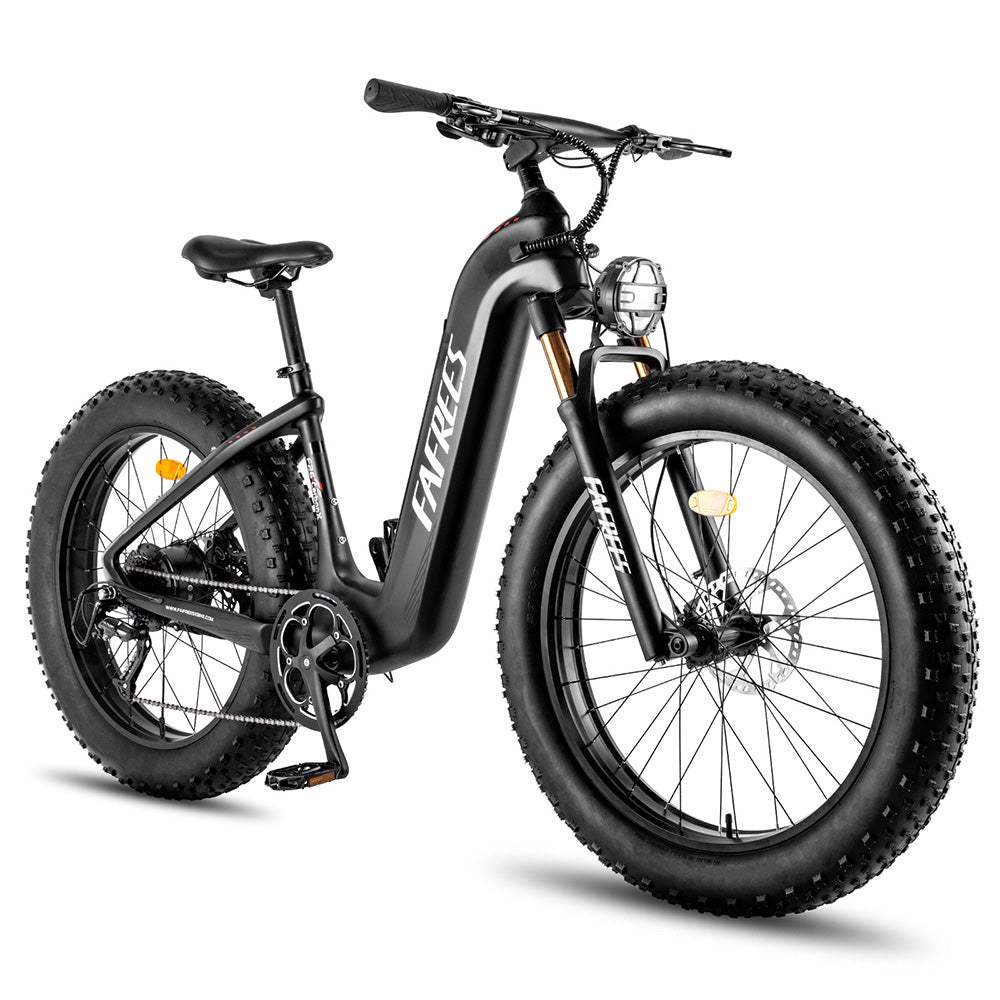

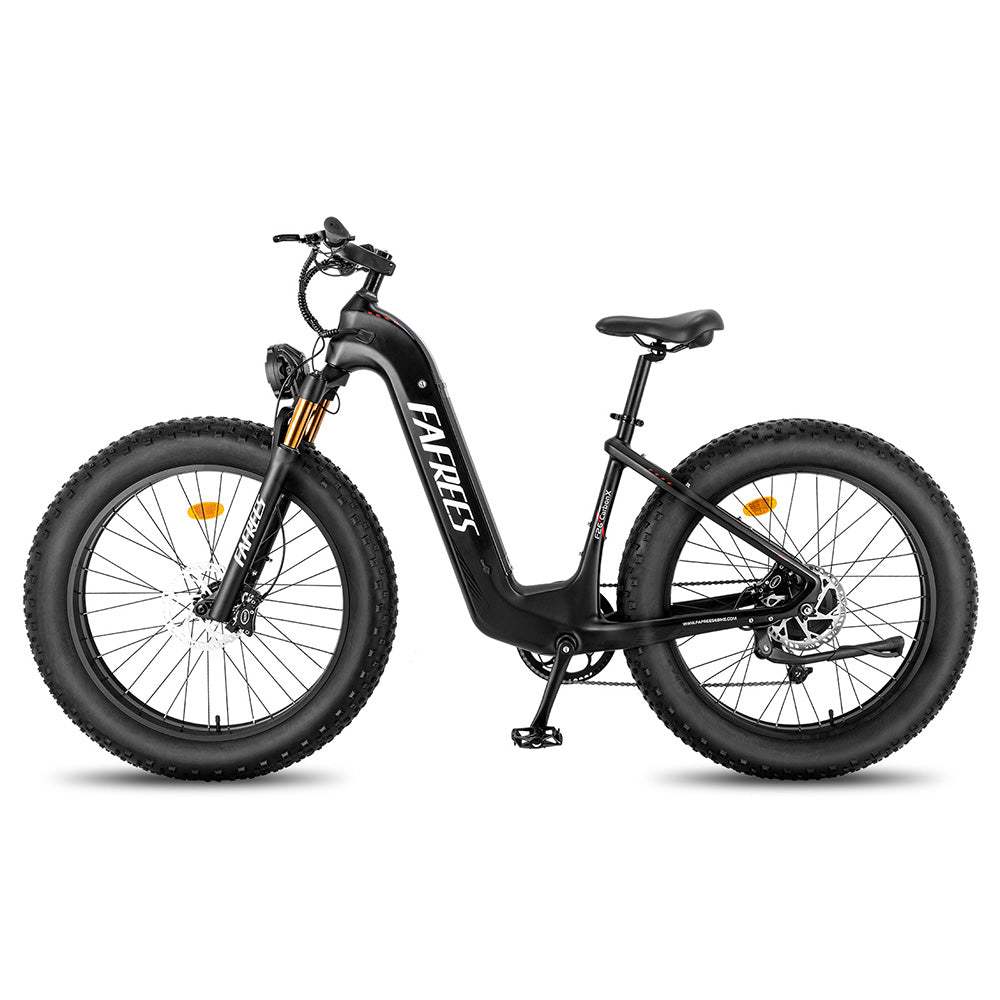

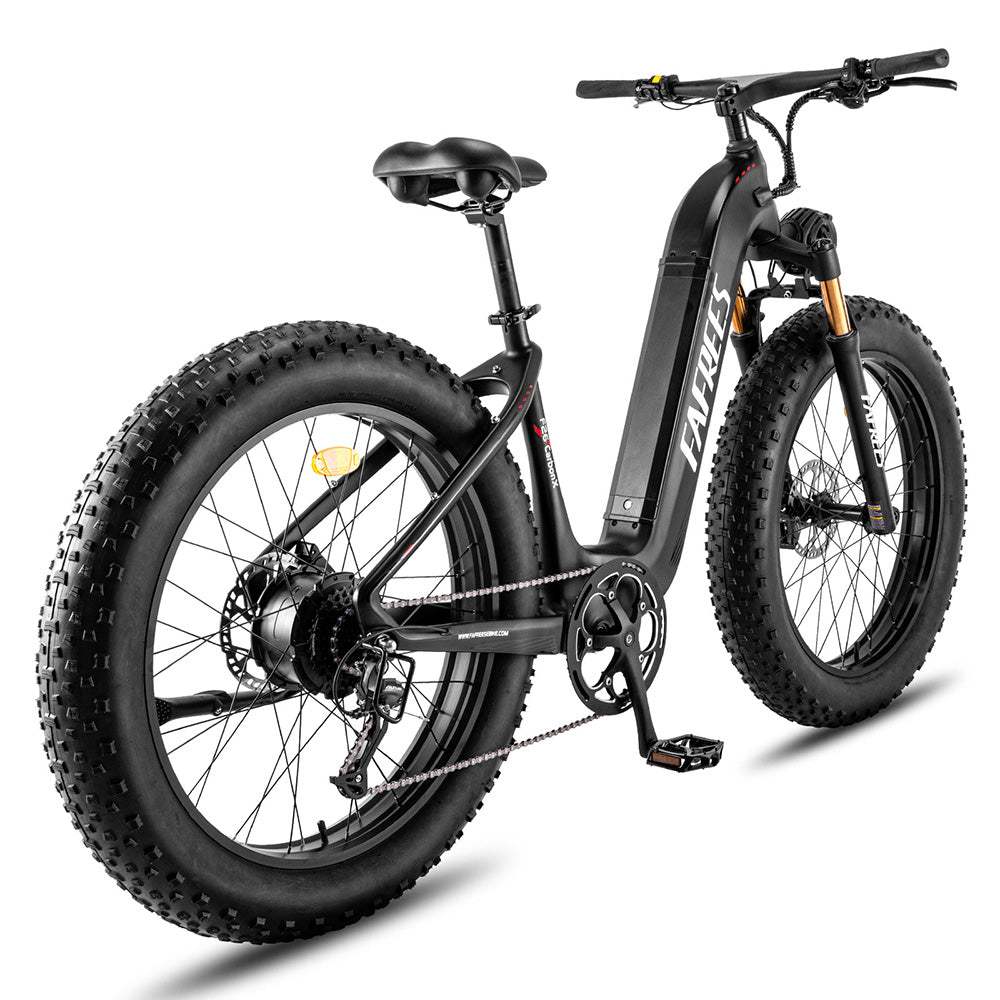

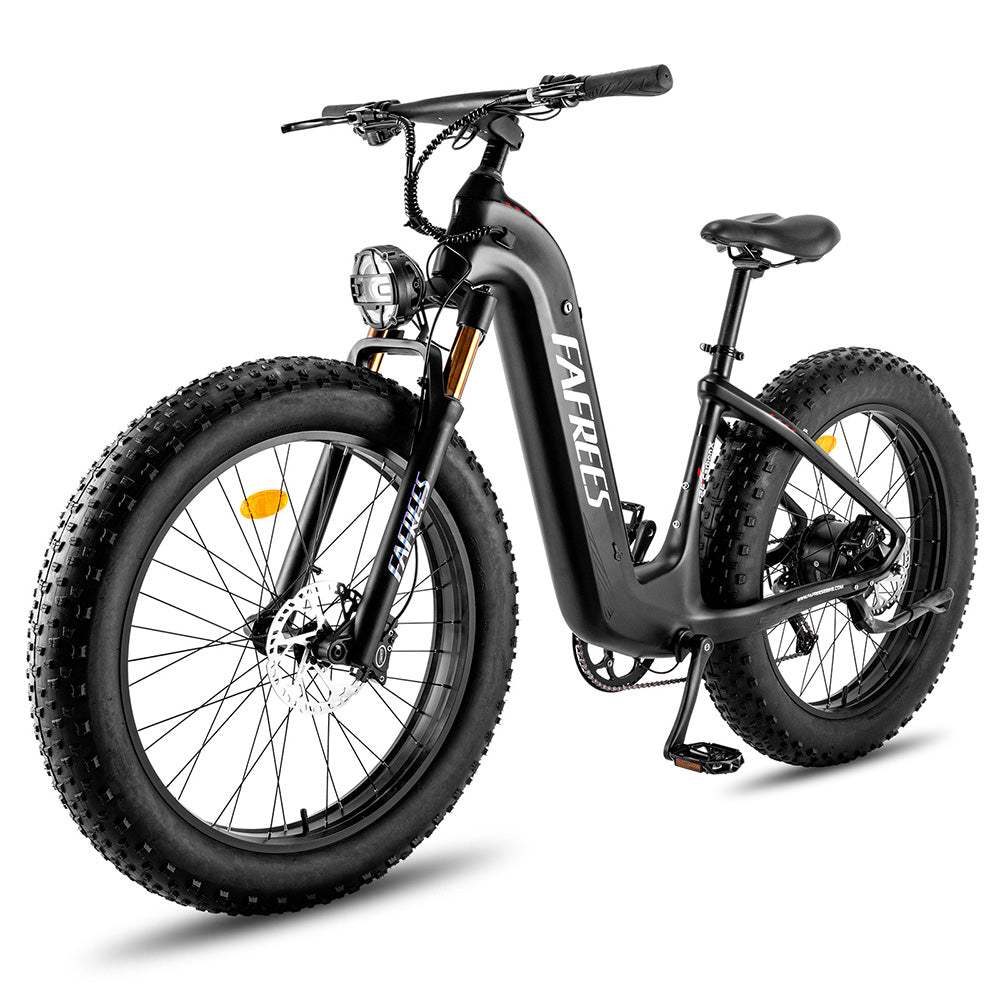

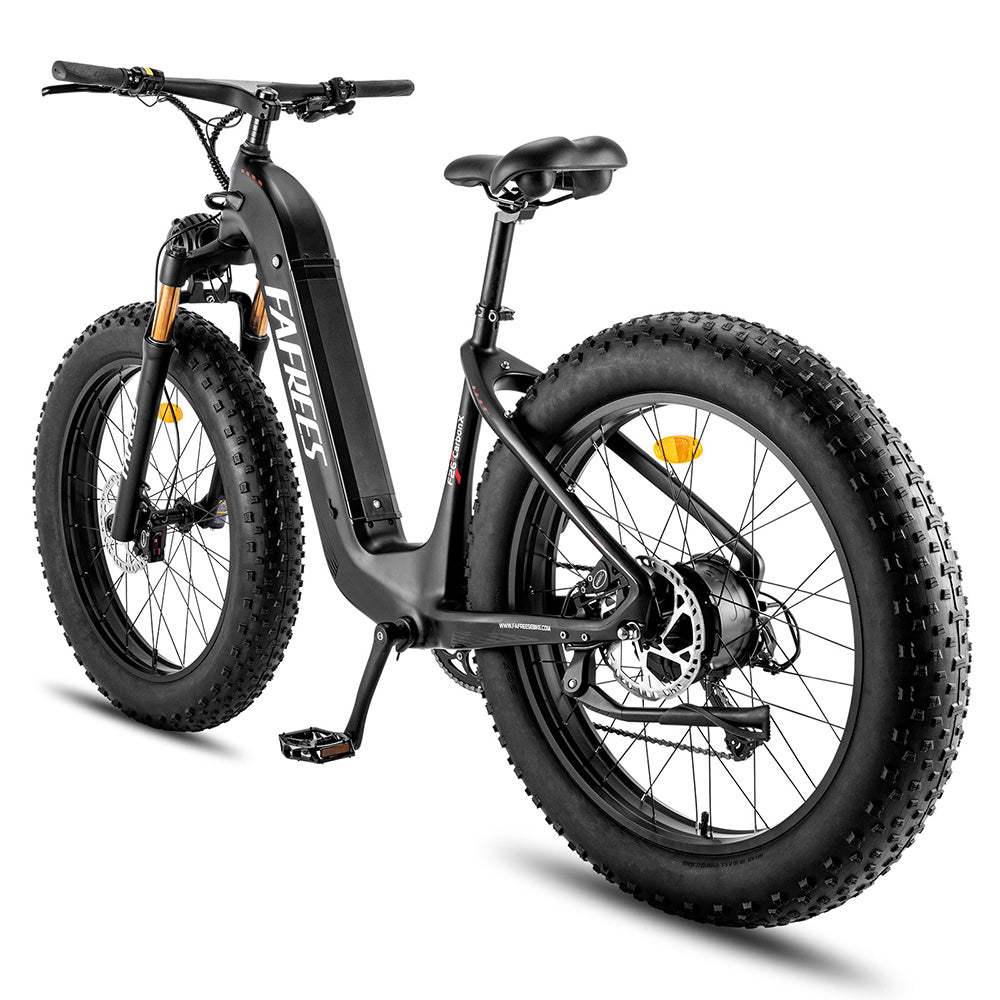

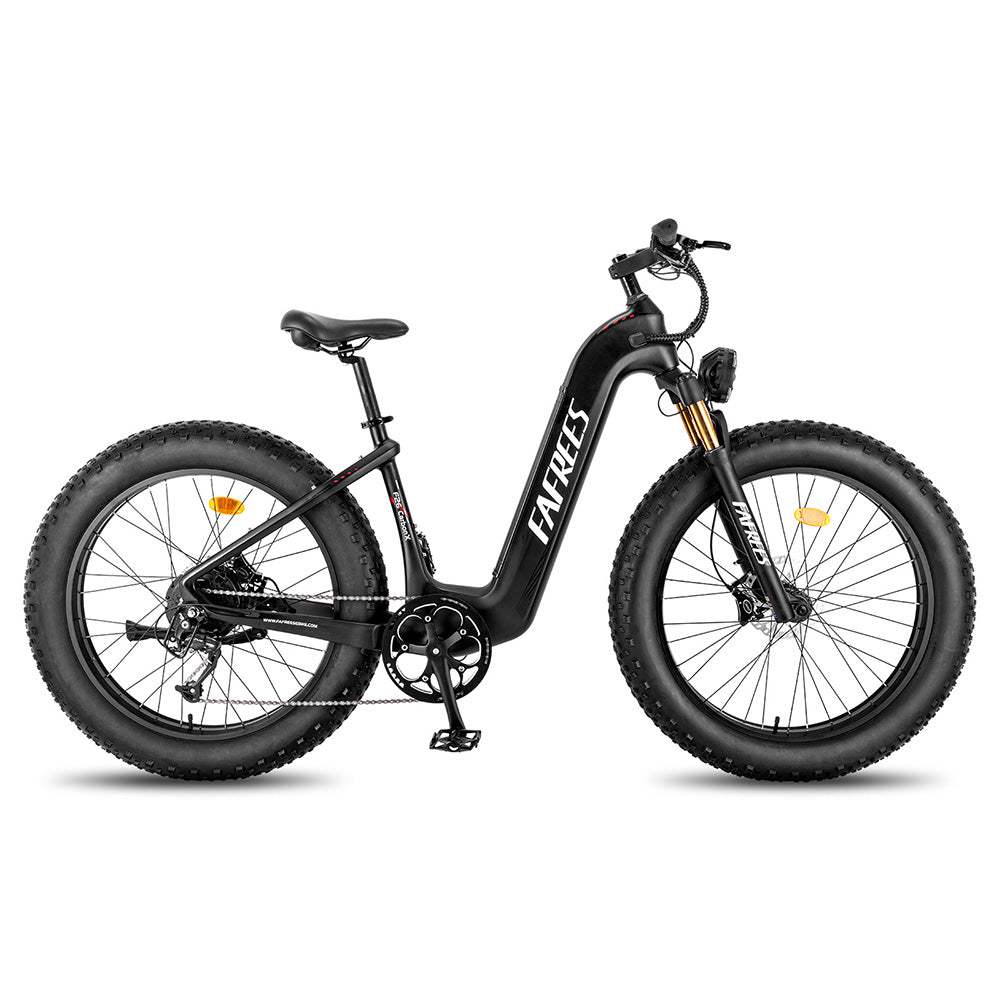

Seamless Carbon Fiber Frame
Lighter & smoother
Stronger & more durable
Absorb shock & dampen vibration

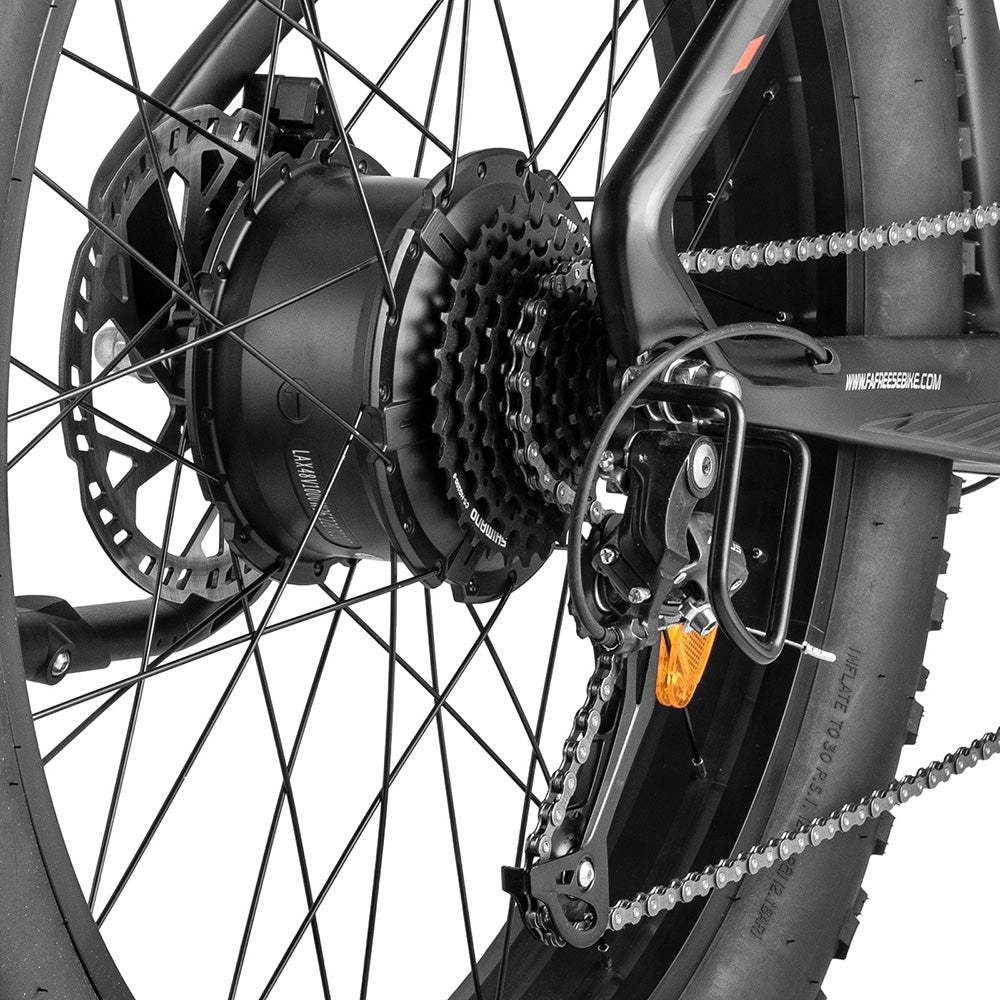

1000W High-speed Brushless Motor ( Top Speed 25km/h )
1000W brushless motor with 95N.M maximum torque combined with intelligent controller produces 25km/h maximum speed.

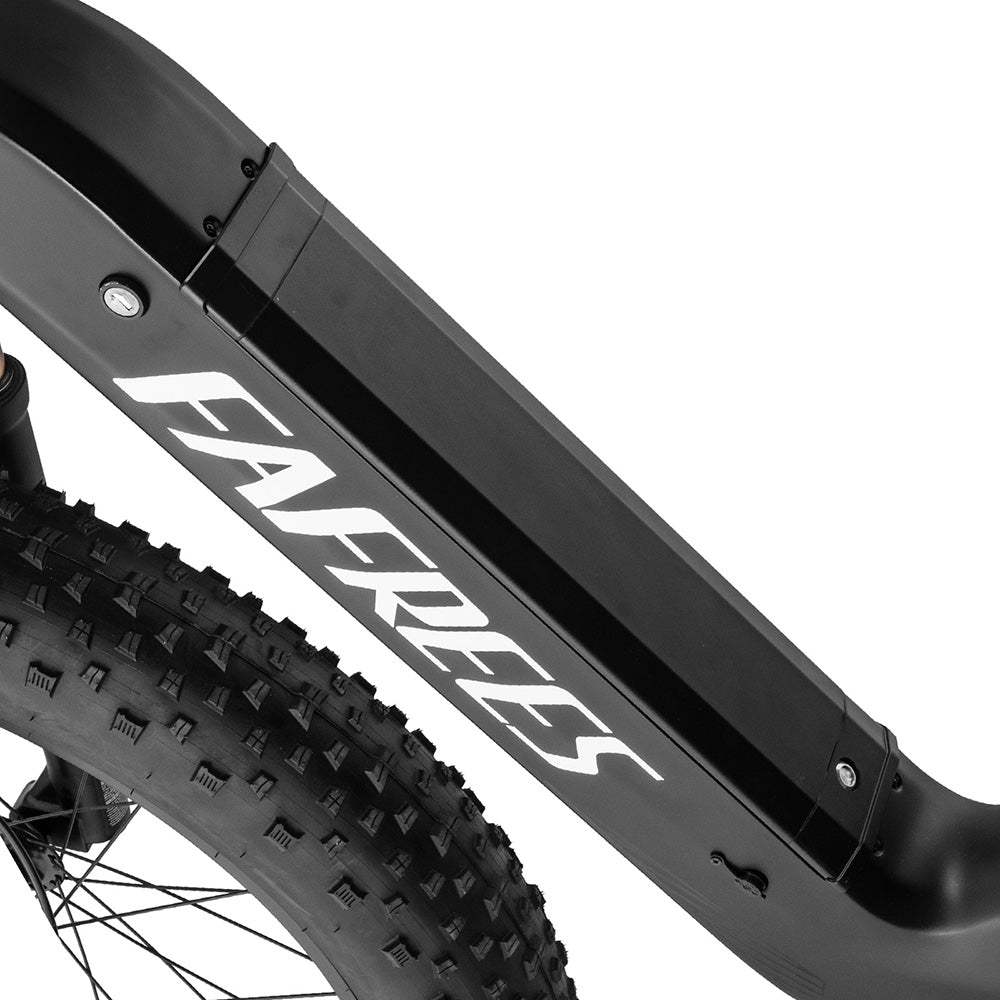

Removable 48V 22.5Ah Ultra-large Samsung Battery
Comes with an advanced 48V 22.5Ah Samsung lithium-ion battery that is fully charged in just 7 to 8 hours. With a lockout key, easy to remove and take it home for charging,

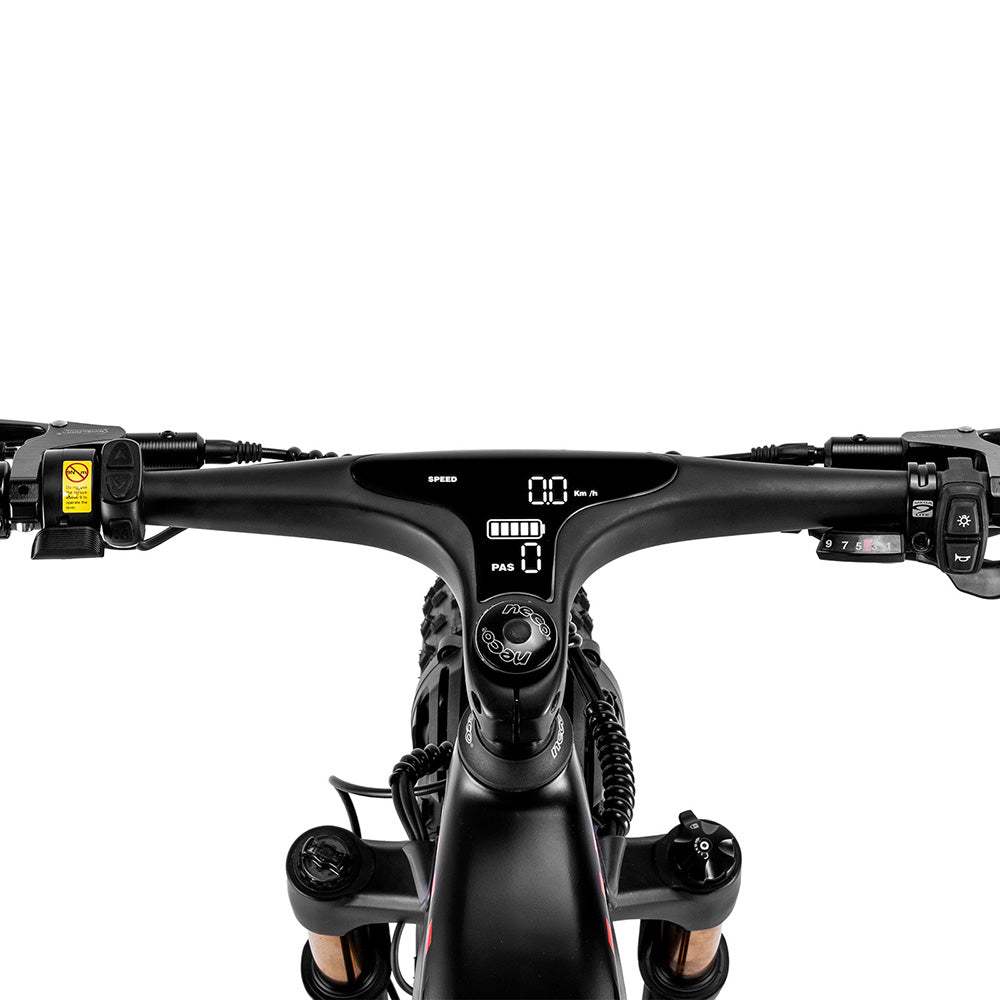

Embedded LCD Display
With an embedded LCD display, check your riding status more conveniently.
26"*4.8 Fat Tires
4.8 fat tire with increased friction that can adapt to a range of riding conditions, including flat ground as well as snow, sand, mud, and gravel roads.
Specifications
Brand | FAFREES |
MODEL | F26 CarbonX |
Type | Carbon-fiber Electric Fat Tire Bicycle |
Frame material | Carbon fiber |
Tire Type | Air tire |
Color | Black |
Tire size | 26"*4.8 |
Recommend rider heights | F26 CarbonX:170-210CM |
Pedal-ground distance | 12cm |

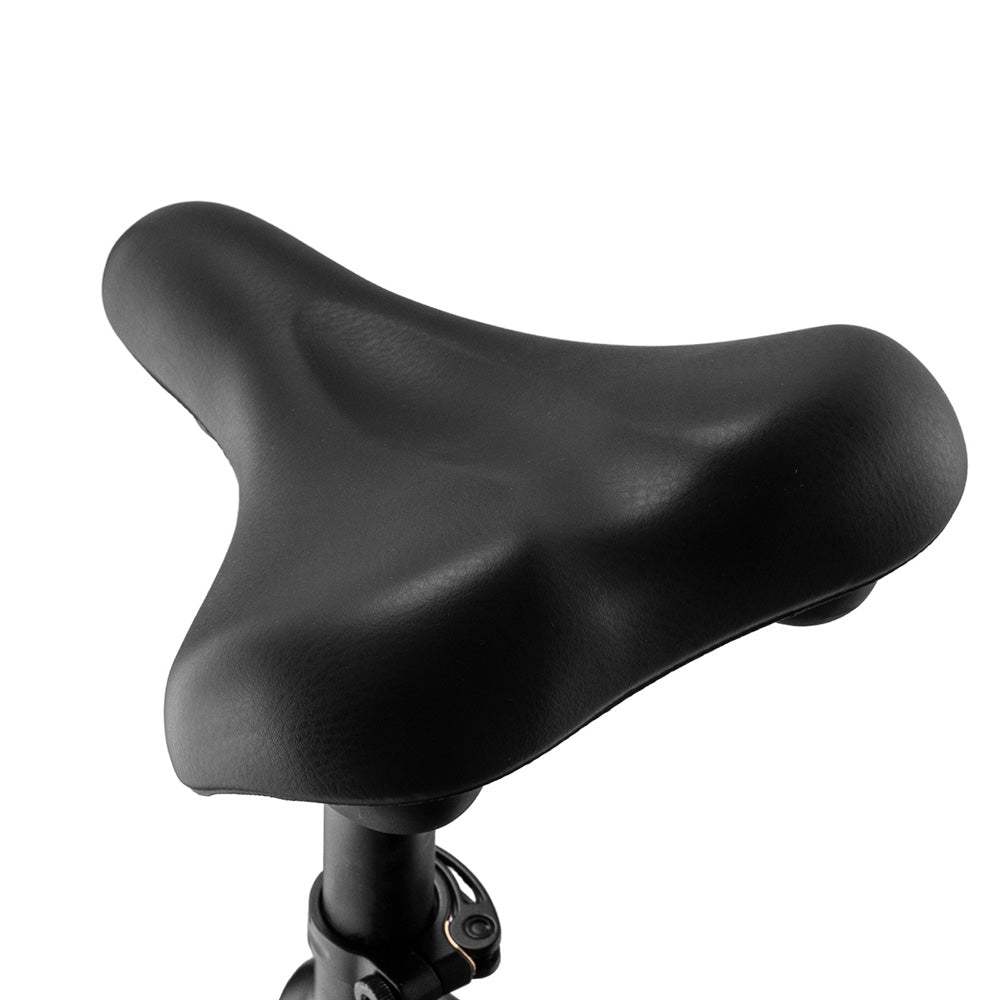

Adjustable height of the seat | 89-102CM |
Adjustable height of the handlebar | 112CM |
Top Speed | 25km/h |
Max range for assisted mode | 120-140km |
Max range for pure electric mode | 80-100km |
Max climbing Gradability | 30° |
Battery type | 21700 Lithium-ion |
Rated voltage (V) | 48V |
Input voltage (V) | 54.6V |
Overcurrent protection value (A) | 35A |
Under-voltage Protection Value | 39V |
Battery capacity (AH) | 48V 22.5Ah Samsung Battery |
Motor power | 1000W |
Motor location | Rear drive |
Maximum torque (N.m) | 95N.m |
Charger | 48V 3A |
Charging time | 7H |

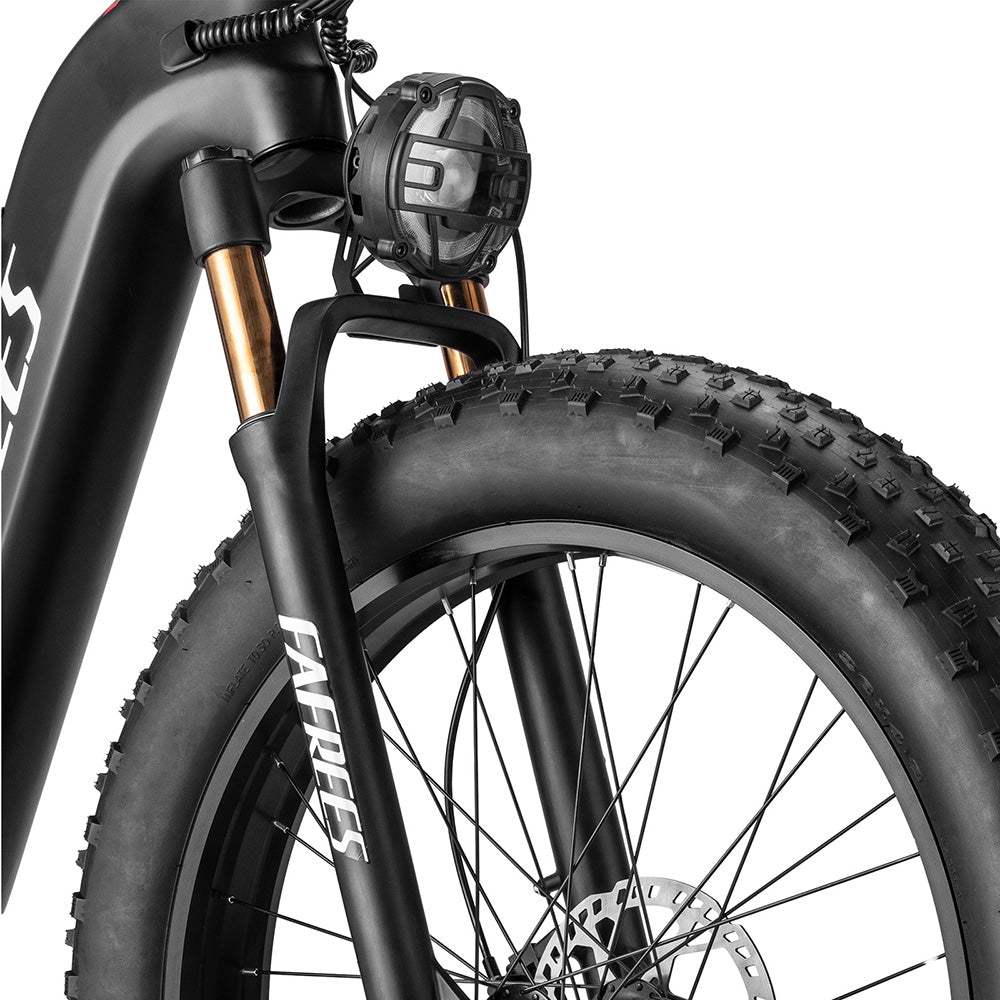

Fork Type | Hydraulic Suspension Fork with lockout |
Fork travel distance | 60mm |
Type of rear shock | No |
Transmission | SHIMANO 9S |

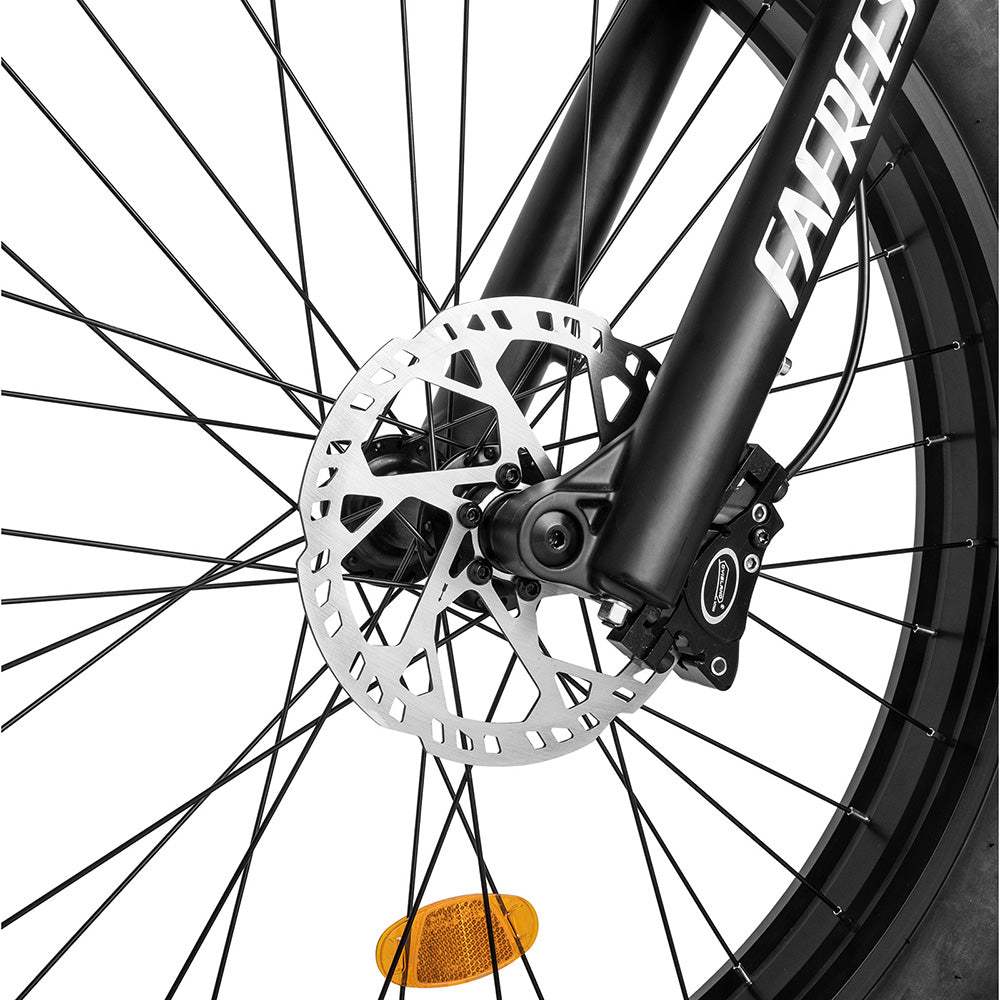

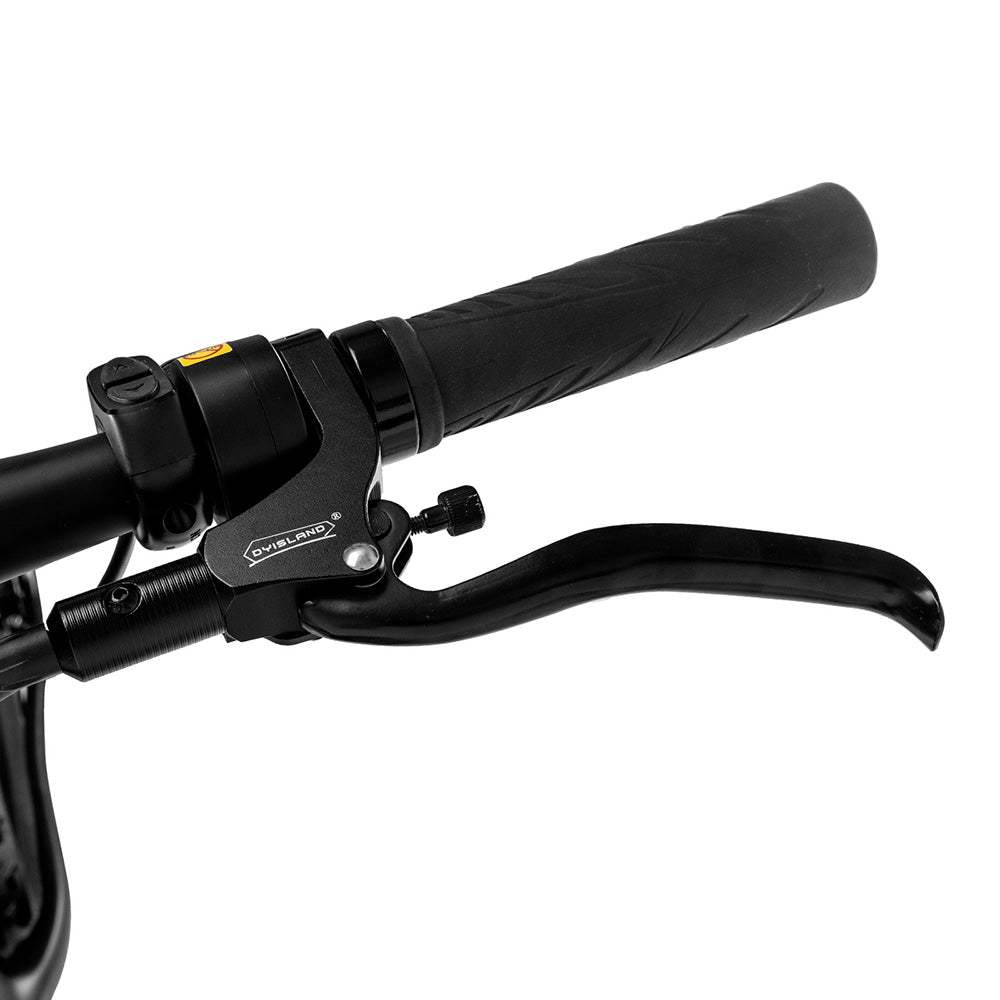

Brake type | Hydraulic Disc Brakes |
Headlight&Taillight | Yes |
Display type | Embedded LCD display |
6km/h walk assist mode | Yes |
Cruise control | Yes |
APP control | No |
PAS level | 0-5 |
Riding mode | Human/assisted/pure power |
Operating temperature | -10℃ to 40℃ |
Waterproof grade | IPX5 |
Unfolded size | 196*112*69CM |
Package size | 156*35*86CM |
Net Weight | 37kg |
Package weight | 48kg |
Battery weight | 4.6kg |
Load Capacity | 180kg |
Package Include | 1*F26 CarbonX e-bike 1*Charger box 1*Charger line 1*Tool kit 1*Owner's manual 1*Tail light 2*Wheel Reflector 1*Left pedal 1*Right pedal 1*Gift box (Including 1*Inner tube, 2*Valve caps, 4*Spokes, 2*wheel reflectors, 2*Battery fuses, 2*Brake linings, 1*key chain) |
E-bike User Manual | Download |
LCD Display User Manual | Download |
