Key Features:
1. 48V / 750W Motor (Max Speed: 25km/h)
The Q20's 48V 750W brushless motor offers high performance, high power, and rapid acceleration.
The rear-wheel hub motor provides unparalleled performance when climbing hills, navigating deep snow, or traversing muddy terrain. The powerful motor enables a top speed of up to 25km/h.

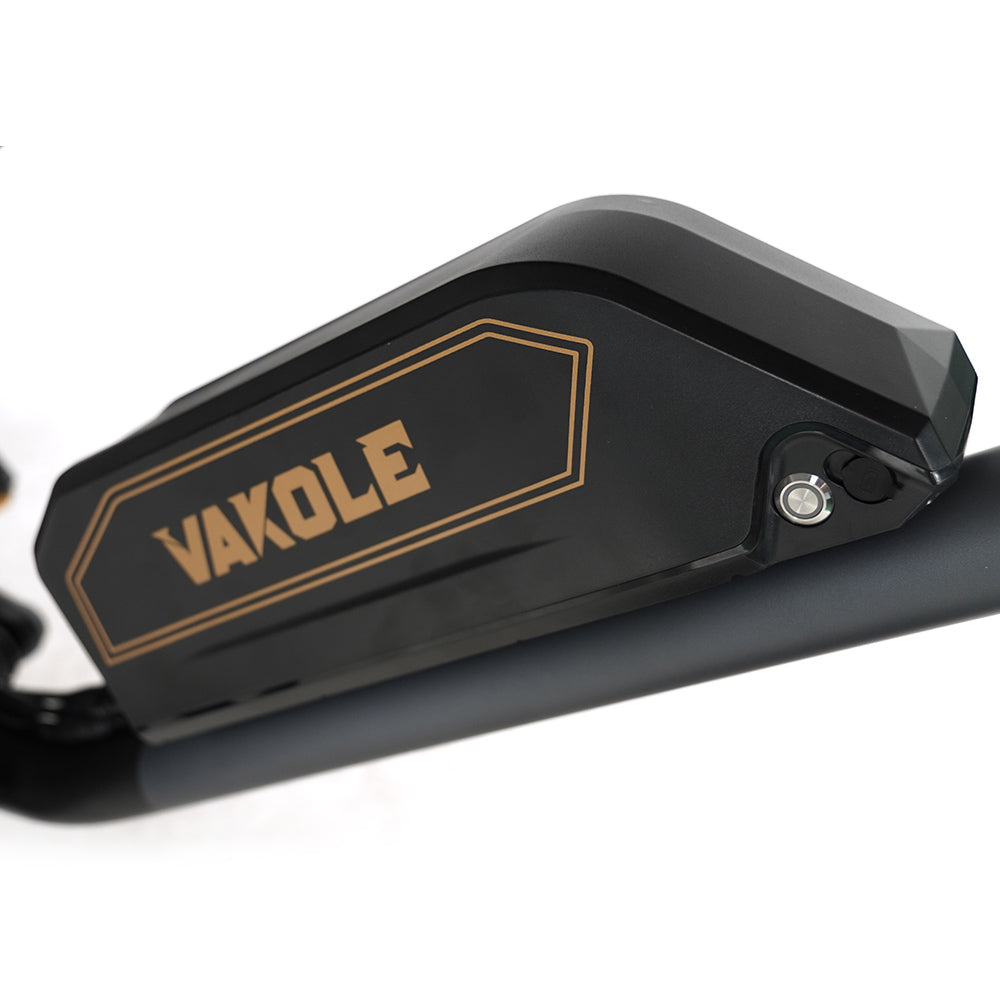

2. 48V 20Ah (960Wh) large capacity Samsung 21700 lithium battery
The Q20 features dual 48V 20Ah high-capacity Samsung 21700 lithium-ion battery packs in assist mode can achieve a range of 80-90 kilometers, and in pure electric mode can achieve a range of 65-75 kilometers.
Its simple design and compact size make the bicycle aesthetically pleasing. Furthermore, it is easy to install and remove, convenient to transport, and safe to use:
√ Waterproof design
√ Long service life
√ Compact size
3. Key-Disp Color Smart LCD Display Screen with App Support
The Q20 supports the latest smart App: Key-Disp, which makes your bicycle smarter and more reliable. You can track the bicycle's location (iOS only) on the App and edit the bicycle's specifications as needed.
No more resetting the display, as setting up is now easier. Download the App with the following image:
Android System: Click Here√
Apple System:Click Here√
4. Front and Rear Suspension
The Q20 is equipped with front and rear suspension, providing a full suspension system that keeps the tires in constant contact with the ground, even on uneven and bumpy surfaces, improving traction and preventing bouncing and loss of grip on rugged terrain, making long-distance riding more stable.
5. 5-Speed Levels with 7-Speed Shimano Mechanical Gears
The bicycle is equipped with a 7-speed Shimano mechanical gear system, which can adapt to various terrains.
Riders can adjust the gears of the bicycle according to their personal preferences to suit different road conditions, such as inclines, bumps, or other difficulties. Lower gears make pedaling easier, while higher gears make downhill riding easier.
6. KTET Hydraulic Disc Brakes
Hydraulic disc brakes use a sealed fluid system to transfer braking force from the lever to the brake caliper.
The advantages of hydraulic disc brakes are: longer lifespan; less maintenance; and stronger braking power.
7. 20 x 4.0" All-Terrain Wide Tires
The Q20 has 4.0" wide tires, which have excellent cut and wear resistance. The tightly woven fabric is lightweight and highly flexible.
To ensure that the tire performance is not affected by excellent traction, the tread design provides good traction and stability. The wide and deep tread pattern offers excellent drainage. It is very suitable for riding on snow, mountain, and rough roads, and even for hunting.
8. Sturdy and Comfortable Motorcycle-Style Front Fork

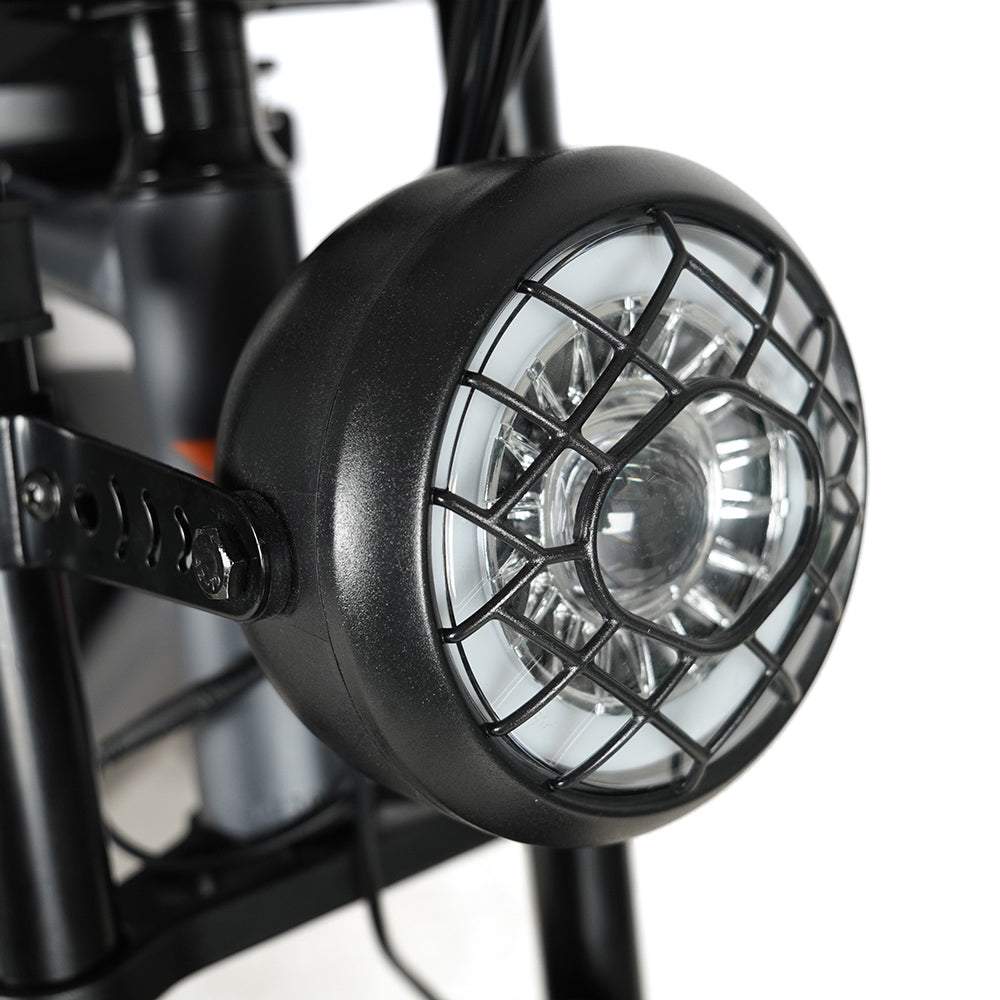

9. Upgraded Cool Front Light
Specifications
Brand | VAKOLE | VAKOLE |
Model | Q20 Dual battery | Q20 Single Battery |
Frame | Aluminum alloy mountain bike frame | Aluminum alloy mountain bike frame |
Battery | 48V 20Ah*2 Samsung / 1920 Wh | 48V 20Ah*1 Samsung / 960 Wh |
Motor | 750W rear motor | 750W rear motor |
Charger | 4A | 4A |
Charging Time | About 5H per battery | About 5H |
Torque | 60 N.m | 60 N.m |
Sensor | Speed Sensor | Speed Sensor |
Derailleur | Shimano Tourney 7-Speed | Shimano Tourney 7-Speed |
Brake | KTET Hydraulic oil disc brakes | KTET Hydraulic oil disc brakes |
Tire | CST 20 x 4.0" | CHAOYANG 20 x 4.0" |
Gradeability | 30° | 30° |
Speed | 25km/h (can be unlocked) | 25km/h (can be unlocked) |
Shock Absorber | Front & rear suspensions | Front & rear suspensions |
Electric Mode Range | 120 - 150 km | 65 - 75 km |
Assist Mode Range | 140 - 170 km | 80 - 90 km |
Maximum Load | 150kg | 150kg |
Turning Light | No | No |
Head & Rear Light | Yes | Yes |
Waterproof Level | IP65 | IP65 |
Suitable Height | 155 - 200 cm | 155 - 200 cm |
APP Support | Yes | Yes |
Net Weight (including battery) | 42kg | 38kg |
Battery Weight | 4.6kg x 2 | 4.6kg x 1 |
Gross Weight | 50.6kg | 46kg |
Product Size | 182x69.5x111cm | 182x69.5x111cm |
Folding Size | / | |
Package Size | 156x26x83cm | 156x26x83cm |
Accessories Pack | 1*tool bag | 1*tool bag |
1*Tyre repair tool | 1*Tyre repair tool | |
1*Tyre pump | 1*Tyre pump | |
1*Multi-function tool kit | 1*Multi-function tool kit | |
1*Phone holder | 1*Phone holder | |
1*Charger | 1*Charger |
